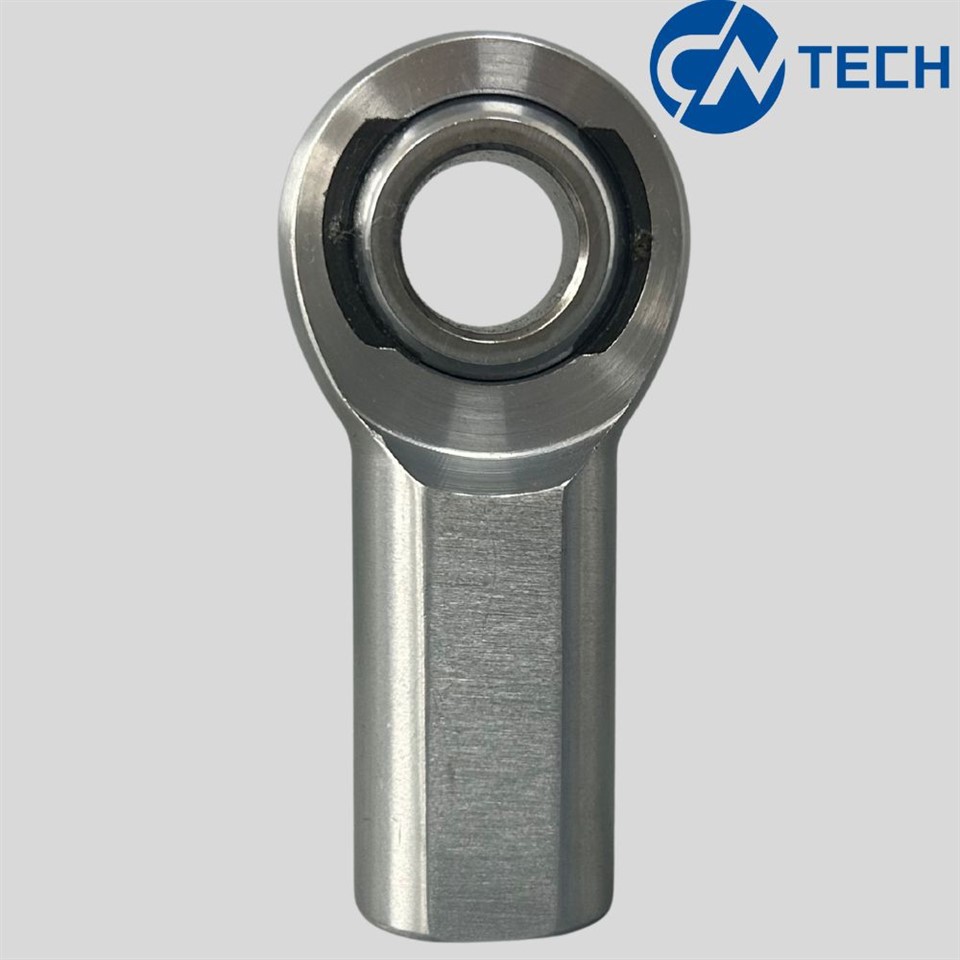

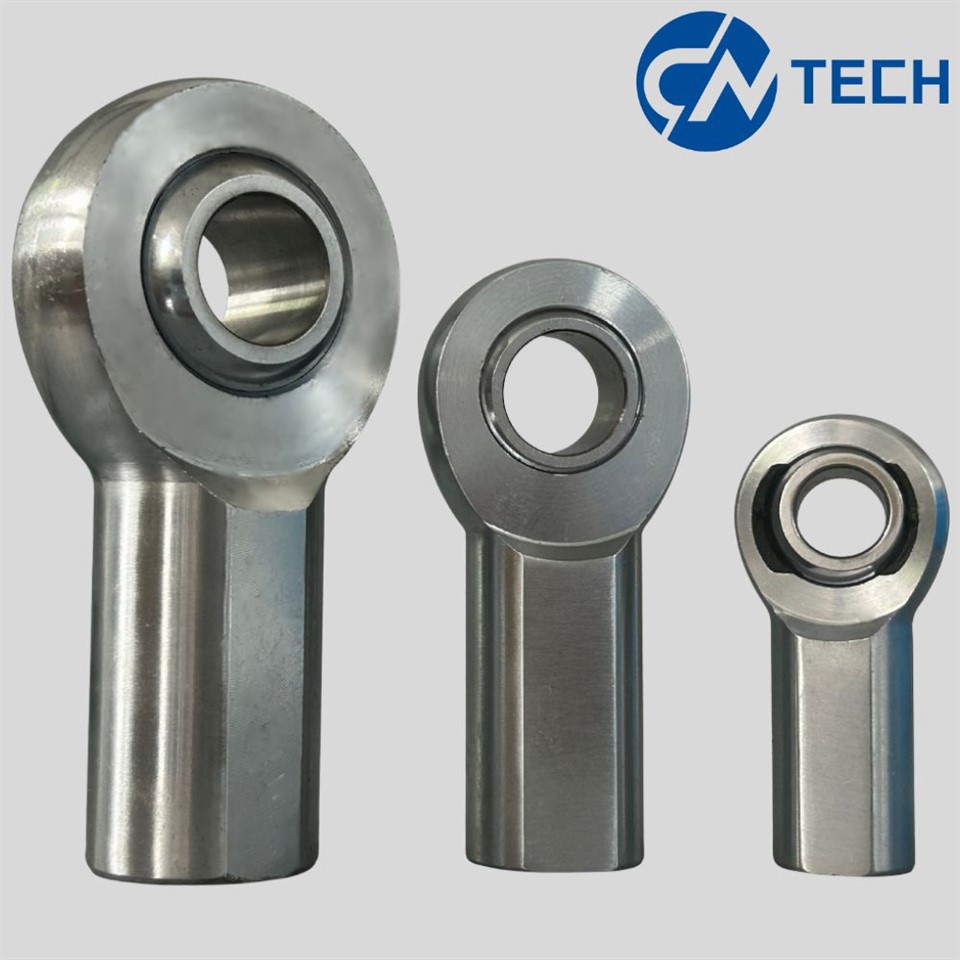

Nou bay pous Fi XF Seri Chromoly Rod End sou ven ane, sa yo ka fin baton dwe aplike nan aplikasyon divès kalite tankou Offroad fi heim jwenti. bout baton nou an ki kouvri pi fò nan mache Ameriken an ak Ewòp, nou espere fè biznis avèk ou pou yon tan long.
Entwodiksyon pwodwi
| Kò/Lojman | 4130 alyaj asye, tretman chalè, chrome plating difisil. |
| Boul | kote yo pote asye 52100, tretman chalè, di chrome plating. |
| Ras | PTFE revètman. |
| Aplikasyon | Sa yo pwent baton seri XF yo ideyal pou otomobil apre mache tankou bra sispansyon, lyen rod.these baton pwent pri yo modere. |
Paramèt teknik

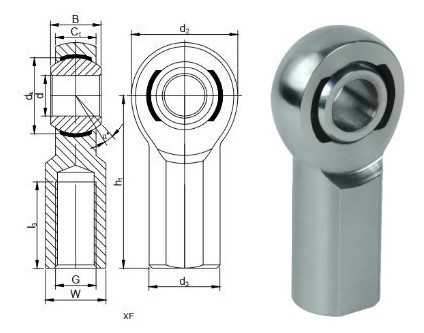

Rod bout(pous, piki plas)
|
Fi kalite |
d +.0015 -.0005 |
B +.000 -.005 |
G Fil 3A/2B |
C1 Ref. |
d2
+.01 -.01 |
h1
+.015 -.015 |
l3 +.062 -.031 |
d3
+.01 -.01 |
W
+.01 -.01 |
dk Boul Dia Re |
yon degre » |
Chaj Radial Estatik » (klbs) |
Pwa »(kgs) Fi |
|
XF3 |
.1900 |
.312 |
10-32 |
.250 |
.625 |
1.062 |
.500 |
.406 |
.312 |
.437 |
13 |
3.3 |
0.018 |
|
XF4 |
.2500 |
.375 |
1/4-28 |
.281 |
.750 |
1.312 |
.687 |
.469 |
.375 |
.500 |
15 |
5.6 |
0.023 |
|
XF5 |
.3125 |
.437 |
5/16-24 |
.344 |
.875 |
1.375 |
.687 |
.500 |
.437 |
.625 |
14 |
7.65 |
0.037 |
|
XF6 |
.3750 |
.500 |
3/8-24 |
.406 |
1.000 |
1.625 |
.812 |
.687 |
.562 |
.719 |
12 |
9.54 |
0.06 |
|
XF7 |
.4375 |
.562 |
7/16-20 |
.437 |
1.125 |
1.812 |
.937 |
.750 |
.625 |
.812 |
14 |
10.3 |
0.095 |
|
XF8 |
.5000 |
.625 |
1/2-20 |
.500 |
1.312 |
2.125 |
1.062 |
.875 |
.750 |
.937 |
12 |
16.2 |
0.15 |
|
XF10 |
.6250 |
.750 |
5/8-18 |
.562 |
1.500 |
2.500 |
1.375 |
1.000 |
.875 |
1.125 |
15 |
17.9 |
0.22 |
|
XF12 |
.7500 |
.875 |
3/4-16 |
.687 |
1.750 |
2.875 |
1.562 |
1.125 |
1.000 |
1.312 |
14 |
28.1 |
0.33 |
|
XF14 |
.8750 |
.875 |
7/8-14 |
.765 |
2.000 |
3.375 |
1.875 |
1.300 |
1.125 |
1.375 |
8 |
45.1 |
0.47 |
|
XF16-1 |
1.0000 |
1.375 |
1-14 |
1.000 |
2.750 |
4.125 |
2.125 |
1.625 |
1.500 |
1.875 |
17 |
76.2 |
1.1 |
|
XF16-2 |
1.0000 |
1.375 |
1-12 |
1.000 |
2.750 |
4.125 |
2.125 |
1.625 |
1.500 |
1.875 |
17 |
76.2 |
1.1 |
|
XF16 |
1.0000 |
1.375 |
11/4 -12 |
1.000 |
2.750 |
4.125 |
2.125 |
1.625 |
1.500 |
1.875 |
17 |
76.2 |
0.98 |
|
XF20 |
1.2500 |
0.937 |
11/2 -12 |
0.937 |
2.750 |
4.125 |
2.125 |
2.250 |
1.500 |
1.795 |
14 |
76.2 |
1.5 |
|
XF24 |
1.5000 |
1.312 |
13/4 -12 |
1.125 |
3.500 |
5.375 |
2.625 |
2.250 |
2.000 |
2.155 |
13 |
131 |
2.1 |
|
XF32 |
2.0000 |
1.750 |
2-12 |
1.500 |
5.000 |
8.000 |
4.000 |
3.125 |
2.750 |
2.875 |
12 |
371 |
5.5 |
|
KÒ |
BOUL |
SELF-LUBR |
LH&RH |
|
Chromoly 4135, chalè trete, sifas zenk plake oswa oksid nwa Nerjaveèi asye 303/304, 316, 420, 17-4PH |
Portant asye 52100 Nerjaveèi 440/440C Harden ak difisil chrome plake |
PTFE ak Nylon ranfòse konpoze |
ajoute "L" oswa "R" nan prefiks nan nimewo, egzanp: XML8T, XFR8T |
|
Egzanp: XXML8T, XXMR8T, materyèl kò 4340 super alyaj chrome asye. (Titàn alloyTC4 ki disponib) Egzanp: SXML8T, SXMR8T, kò ak boul materyèl en fe. |
|||
FAQ
K: Èske ou se yon faktori?
A: Nou se faktori. Mete pwodiksyon, komès, lavant nan yon sèl.
K: Konbyen tan se tan pwodiksyon ou a?
A: Anjeneral 2-30 jou apre peman an. Sa depann de kantite ou.
K: Èske ou pwodui echantiyon?
A: Pou pwodwi estanda, nou ka bay echantiyon gratis .Epi pri eksprime a pral chaje pa kliyan an, men yo ka retounen apre yo fin mete lòd mas.
K: Ki jan asire bon jan kalite a?
A: Nou pwodwi dapre teknoloji a konfime oswa desen pou chak lòd pou kliyan nou yo. Epi nou gen strik sistèm kontwòl kalite. Nou enspekte machandiz pandan pwodiksyon dapre yon frekans sèten epi nou menm tou nou fè enspeksyon final la anvan machandiz yo chaje.
K: Èske ou renmen fè ti lòd?
A: Nou kontan pwogrè ansanm ak tout kliyan nou yo .Nou espere kliyan nou yo vin pi fò ak pi fò avèk nou.
